ZW3D

CAD

ZW3D CAD module drives innovative product design.

Powerful Translator to Maximize Data Reuse

ZW3D supports translating non-native CAD data of different 3D modeling systems CAD data exchange with multiple suppliers becomes so easy.

Mold

ZW3D Mold module covers diversified needs of mold design

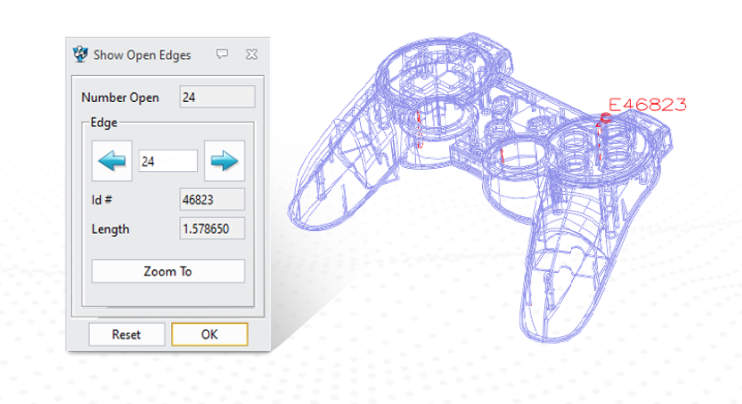

Powerful Repairing for Guaranteed Data Quality

Various geometric topological states, such as repeated surfaces and open edges can be accurately analyzed and repaired. With geometric gaps efficiently filled and missing surfaces rebuilt, a complete solid model is ready to ensure data quality.

CAM

ZW3D CAM module enables efficient and reliable machining.

Intelligent 2-Axis Milling

Hole & 2-Axis Tactics can help generate manufacturable toolpaths automatically, cutting programming time by 70%.

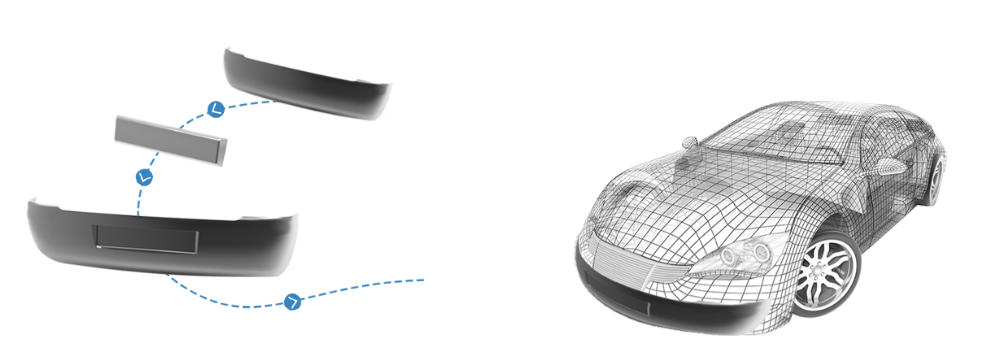

Innovative Solid-Surface Hybrid Modeling to Maximize Design Flexibility

Based on innovational Solid-Surface Hybrid Modeling technology, users can make Boolean operations for surface parts directly with solid geometries.

Fast Core-Cavity Parting to Accelerate Mold Design

• Parts can be split directly through parting lines or parting faces, which can be created automatically, saving your time for model healing.
• Multi-cavity design is supported to meet various design demands of different products.

Productive 3-Axis Milling

• More than 40 types of machining operations are available to facilitate efficient machining, so that you can deal with all kinds of manufacturing work at ease.
• No matter on Nurbs or STL geometry, desired tool paths, or even undercut tool paths can be easily generated.

Advanced Assembly Functions to Boost Productivity

• Abundant tools can help handle your complex assemblies via both top-down and bottom-up design. You can flexibly assemble, manage, and edit the components, view different status, update associated models, etc.
• Reliable verification tools can help ensure the manufacturability of your design

Abundant Library of Mold Bases & Components with Different Standards

The built-in library of mold bases and standard parts can be modified and personalized, meeting requirements of different countries and companies.

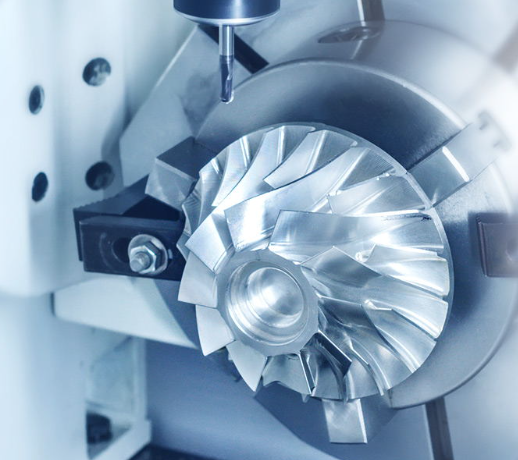

Advanced 4-Axis and 5-Axis Milling

• 5-axis milling provides a complete solution for indexing and 4 to 5-axis machining, and it’s also able to work with STL file.
• Comprehensive functions, like Swarf, Drive Curve, Drive Surface, Flow Cut, Side Cut and Point Control are available to extend machining capabilities for different scenarios.
